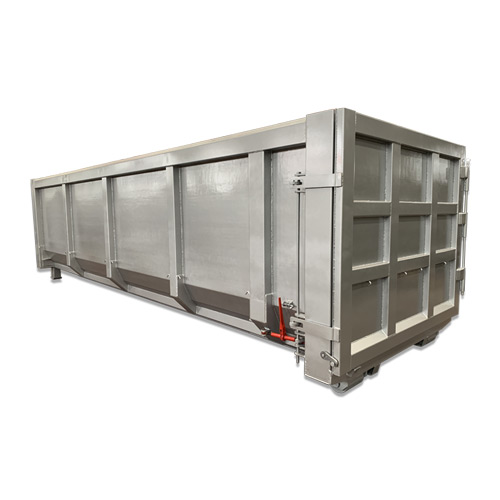

Hook Lift Bin NM450

Characteristic of U Shape Hook Lift Bin

  1. The box body is made of wear-resistant plate NM450 and high-strength plate 700L by bending and welding.
  2. The whole box body is only made of three pieces of wear-resistant steel plate, with attractive appearance, high strength and light weight.
  3. There is no horizontal or vertical beam inside the bin, and no residue in the bin.

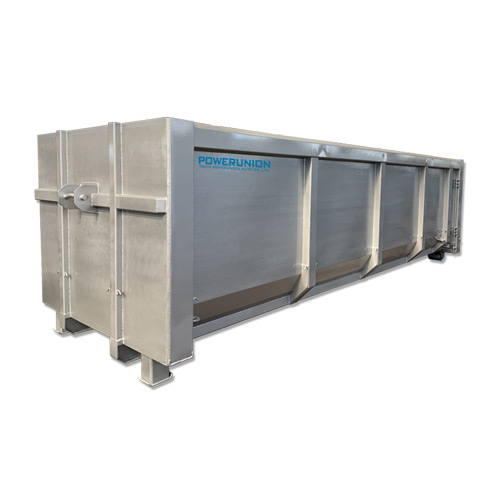

Hook Lift Bin NM450

Product introduction of U Shape Hook Lift Bin

The side plate of the box body is made of Baosteel NM450 wear-resistant plate by one-time bending, which is beautiful and of high strength.

Through reasonable design and calculation, each bending angle is different, so as to improve the overall strength of the steel plate.

The whole box body adopts modular design to meet different customer needs. The length, width and material thickness of the box body can be optimized quickly.

Through SolidWorks modeling and design, we can design and customize quickly according to different requirements of customers.

Hook Lift Bin NM450

The box frame is the base of the whole U-shaped hook lift bin. The front and back plates, side plates and bottom plates of the box are fixed by the frame. The function of the frame is to support and connect all parts of the hook lift bin, and bear various loads from inside and outside the box. Therefore, the static and dynamic characteristic of the frame is the basis of its structural design, improvement and optimization, and is one of the key factors to ensure the excellent performance of the box. We have carried on the finite element static analysis to the frame structure, thus checked the frame strength and the rigidity. Through the continuous optimization of the analysis data, the strength and rigidity of the frame have fully met the requirements of the Japanese market.

Hook Lift Bin NM450

The inside and outside of the box are smooth and made of wear-resistant steel plate by one-time bending, with beautiful appearance, high strength and light weight. There is not any reinforced horizontal and vertical beam inside the bin, no residue and no spilling. Compared with the traditional rectangular cargo box, the U-shaped box has the following outstanding advantages:

  1. Light weight. The weight can be reduced by 20% ~ 40%, which is more energy-saving and economical.
  2. High strength. The strength is 1.5-3 times the same thickness of ordinary steel, which has strong loading capacity and impact resistance.
  3. Fast unloading, no residue, high transportation efficiency.
  4. Low center of gravity and good stability.

Hook Lift Bin NM450

Our first generation of U shape hook lift bin products have been recognized by Japanese customers, and our second generation products are in the process of design and improvement. Compared with the first generation of products, the second generation is stronger in structure and more optimized in structure.
