The box frame is the base of the whole U-shaped hook lift bin. The front and back plates, side plates and bottom plates of the box are fixed by the frame. The function of the frame is to support and connect all parts of the hook lift bin, and bear various loads from inside and outside the box. Therefore, the static and dynamic characteristic of the frame is the basis of its structural design, improvement and optimization, and is one of the key factors to ensure the excellent performance of the box. We have carried on the finite element static analysis to the frame structure, thus checked the frame strength and the rigidity. Through the continuous optimization of the analysis data, the strength and rigidity of the frame have fully met the requirements of the Japanese market.

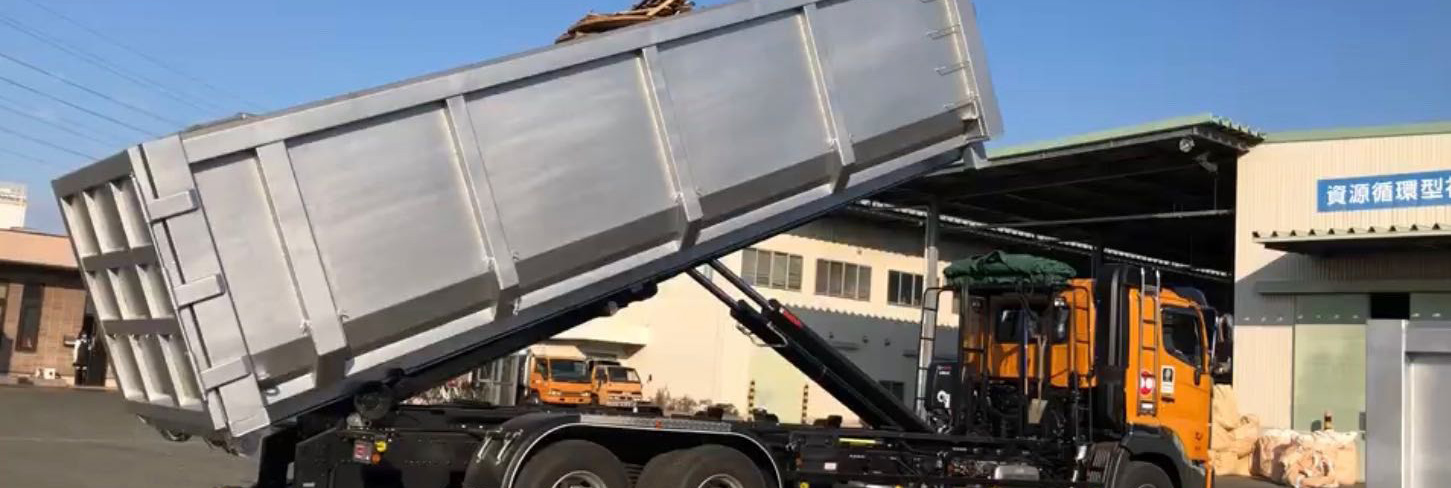

HOOK LIFT BIN
HOOK LIFT BIN
The box body is made of wear-resistant plate NM450 and high-strength plate 700L by bending and welding.
HOOK LIFT BIN
The U-shaped box has the following outstanding advantages
Advantages A
Light weight
Light weight. Which is more energy-saving and economical.

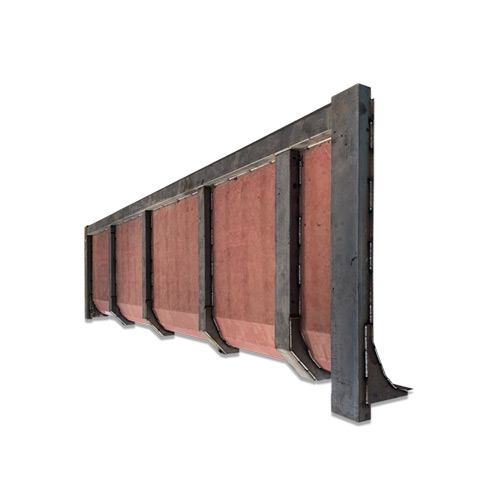

Advantages B
High strength
High strength. Which has impact resistance.

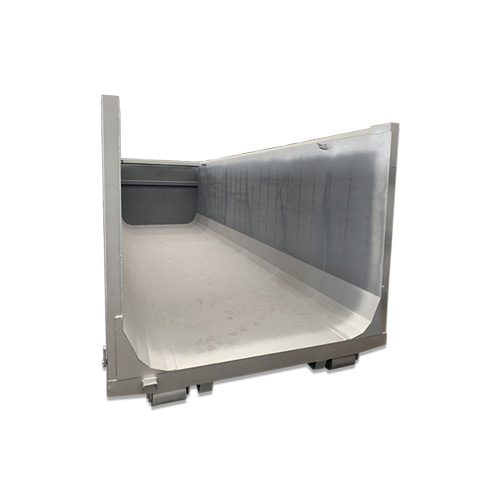

Advantages C
Fast unloading
Fast unloading, no residue, high transportation efficiency.
Advantages D
Good stability
Low center of gravity and good stability.
