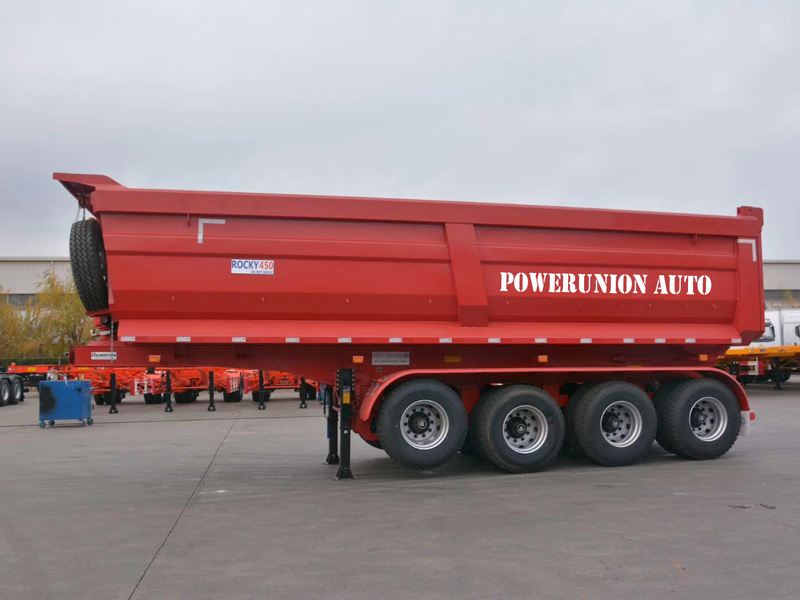

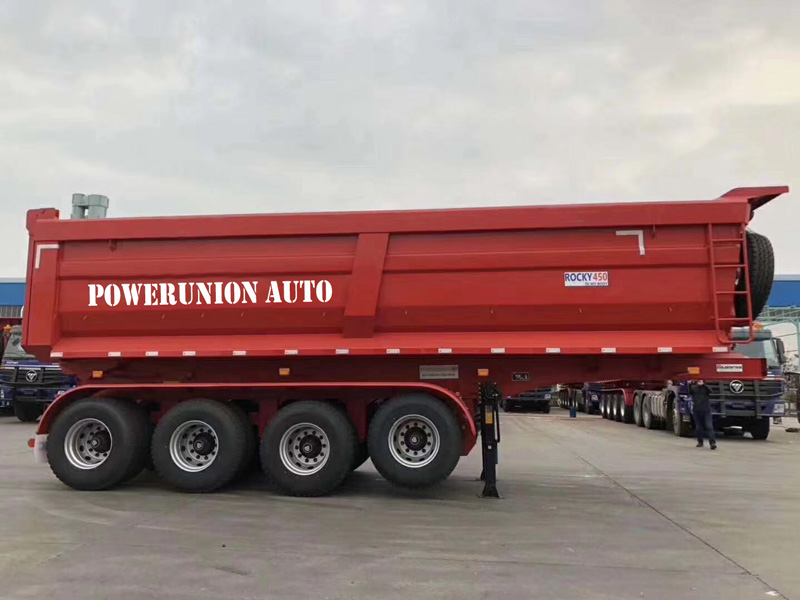

Product name: U DUMP SEMI TRAILER
Size: 9500mm *2500mm*1700mm
Axle: FUWA 16T
Suspension: Mechanical suspension, 4 axis enhancement
Landing gear: heavy duty landing gear 30T, two-speed, manual operating
Kingpin: JOST , 3.5’’, bolt-in king pin
Wheel rim: 8.5*20, 12 wheels
Tire: 12.00R20, 12
Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber
ABS: 4S/2M
Electrical: 24V, LED
Cylinder: HYVA, FCA191-5-07325
Floor: 8mm, NM450
Side wall: 6mm, NM450
| Product name | U DUMP SEMI TRAILER |
| Size | 9500mm *2500mm*1700mm |
| Axle | FUWA 16T |
| Suspension | Mechanical suspension, 4 axis enhancement |
| Landing gear | heavy duty landing gear 30T, two-speed, manual operating |
| Kingpin | JOST , 3.5’’, bolt-in king pin |
| Wheel rim | 8.5*20, 12 wheels |
| Tire | 12.00R20, 12 |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber |
| ABS | 4S/2M |
| Electrical | 24V, LED |
| Cylinder | HYVA, FCA191-5-07325 |
| Floor | 8mm, NM450 |
| Side wall | 6mm, NM450 |
