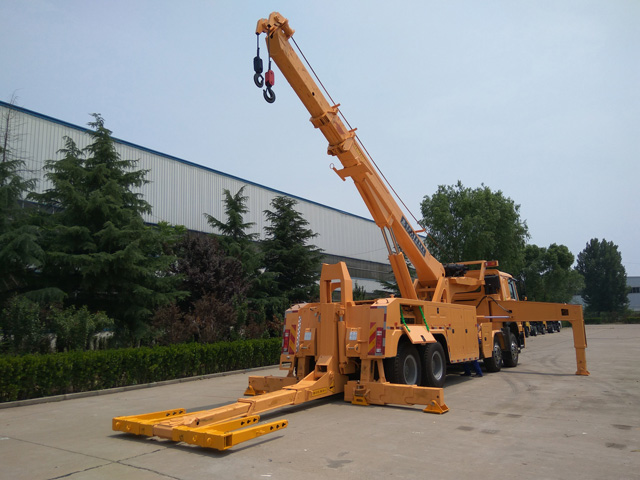

Rotator Type Tow Truck 30 Ton

Rotator Type Tow Truck 30 Ton Specification

BOOM Max. retracted lift capacity 30000kg
Max. extended lift height 11500mm
Telescopic distance 6600mm
Max. elevation angle 50°
Rotation angle 360°continuous
UNDER-LIFT Max. retracted lift capacity (parking) 20000kg
Max. extended lift capacity (parking) 7200kg
Rated retracted lift capacity (running) 12000kg
Max. effective length 3778mm
Telescopic distance 2090mm
Range of elevation angle -10°-93°
Folding angle 103°
WINCH& CABLE Rated pull of winch 150KNx2units
Cable diameter*Length 22mm*40m
Min. line speed of cable 5m/min
LANDING LEG Longitudinal span of front and rear landing legs 7350mm
Transverse span of front outriggers 6500mm
Transverse span of rear landing legs 4224mm
TOWING CAPACITY Rated towing weight 38000kg
Max. towing weight for tractor and trailer 49000kg
